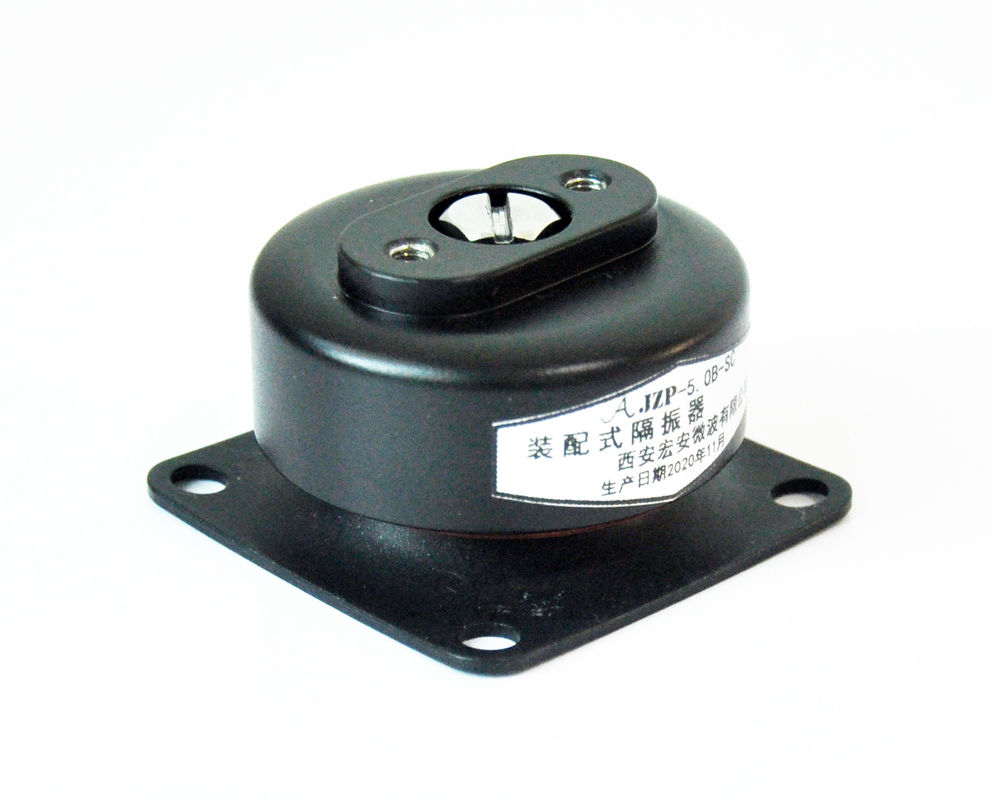

Name: JZP-1.0B-SC Modular Rubber Shock Absorber with M5 Mounting Hole Size 1 inch Maximum Deflection and 100-1000 lbs/in Spring Rate
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JZP-1.0B-SC, el cual es un avión de combate.
Availability: InStock

En casa > productos > amortiguador de choque de goma >

JZP-1.0B-SC Modular Rubber Shock Absorber with M5 Mounting Hole Size 1 inch Maximum Deflection and 100-1000 lbs/in Spring Rate

M5 Mounting Hole Size Rubber Shock Absorber

1 inch Maximum Deflection Vibration Isolator

100-1000 lbs/in Spring Rate On-Vehicle Vibration Isolator

Lugar de origen:

Porcelana

Nombre de la marca:

Hoan

Número de modelo:

JZP-1.0B-SC, el cual es un avión de combate.

Contacta con nosotros

Solicitar una cita

JZP-1.0B-SC Modular Rubber Shock Absorber with M5 Mounting Hole Size 1 inch Maximum Deflection and 100-1000 lbs/in Spring Rate

Detalles del producto

Ancho:

60 mm

Componentes principales:

Motor, engranaje

Forma:

Cilíndrico

Resistencia a la corrosión:

Resistente a la corrosión

OEM:

Sí

Tamaño del orificio de montaje:

Compatibilidad:

Se adapta a la mayoría de los sistemas de amortiguadores estándar.

Flexibilidad:

Flexible

Tipo:

Amortiguador

Deflexión máxima:

1 pulgada

Tarifa de primavera:

100 a 1000 libras por pulgada

Resistencia a la presión:

Alto

Alto:

30 mm

Frecuencia de vibración:

5-50HZ

Resaltar:

M5 Mounting Hole Size Rubber Shock Absorber

1 inch Maximum Deflection Vibration Isolator

100-1000 lbs/in Spring Rate On-Vehicle Vibration Isolator

Condiciones de pago y envío

Cantidad de orden mínima

Condiciones de pago

LC, D/A, D/P, T/T, Western Union, MoneyGram

Productos relacionados

JZP-5.5B-SC Rubber Shock Absorber with Vibration Frequency 5-50Hz and Max Static Load 5.5Kg in 3-24 Inches Length

Obtenga el mejor precio

JZP-5.0B-SC Rubber Shock Absorber with 10Hz to 100Hz Frequency Range High Vibration Resistance for On-Vehicle Efficiency Validation New Product 2025

Obtenga el mejor precio

JZP-4.0B-SC Rubber Shock Absorber with M5 Mounting Holes 30mm Height and High Pressure Resistance for Vibration Isolation

Obtenga el mejor precio

JZP-3.5B-SC Modular Rubber Shock Absorber with 5-6KG Load Range 1:2 Compression Ratio and 40g/11ms Shock Resistance

Obtenga el mejor precio

Contacta con nosotros

86-29-88292913

Contacta ahora

Descripción del producto

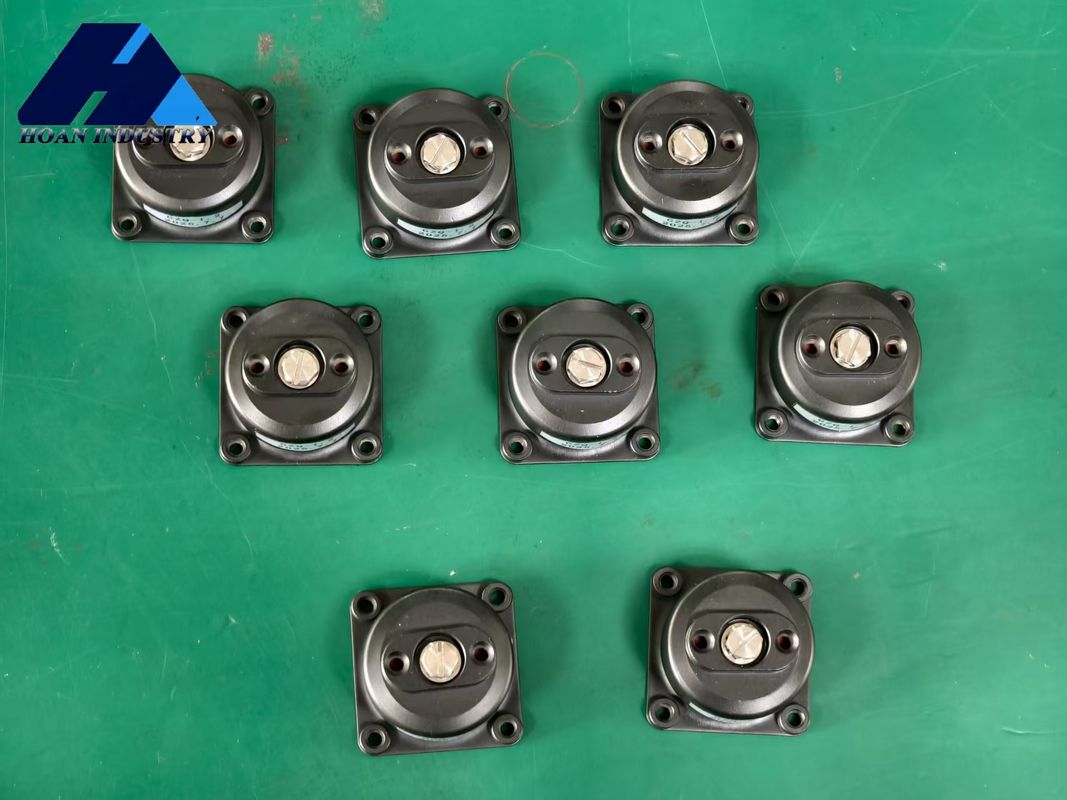

JZP-1.0B-SC On-Vehicle Modular Vibration Isolators

The Ultimate Protection and Stability Solution Rubber Shock Absorber

JZP-B-SC Series

Master Turbulence, Safeguard Core Stability: Xi'an Hoan's JZP Series Vibration Isolators redefine on-vehicle equipment stability with military-grade technology.

On moving vehicles, the greatest threat to precision electronic equipment comes from sustained vibration and impact. Drawing on military technology heritage, Xi'an Hoan Microwave Co., Ltd. developed the JZP Series as the "dynamic stability cornerstone" for on-vehicle precision equipment.

The JZP Series features an advanced modular structure combining high-damping elastic materials with precision-engineered mechanical components. This creates an efficient energy conversion system that absorbs and dissipates destructive vibrations, establishing a reliable buffer between equipment and vibration sources.

Unlike traditional shock-absorbing solutions, the JZP Series offers unparalleled adaptability. Its modular design allows flexible configuration for cabinets, servers, communication hosts, or precision sensors based on weight, center of gravity, and vibration sensitivity requirements.

Essential for military communications, emergency command, and remote sensing monitoring applications, these isolators enable high-tech equipment to maintain laboratory-grade stability even during high-speed vehicle movement.

Dimension Parameters

Model	D (mm)	H±1 (mm)	h (mm)	A±0.2 (mm)	B (mm)	d	d2	R	B (mm)
JZP-B-SC	46	30	21	40	50	M4	∅5.5	5	22

Technical Parameters

Model	Nominal Load (kg)	Static Displacement (mm)	Working Temperature (℃)	Resonance Frequency (Hz)	Impact Test	Valid Period (year)
JZP-1.0B-SC	1.0	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-1.5B-SC	1.5	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-2.0B-SC	2.0	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-2.5B-SC	2.5	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-3.0B-SC	3.0	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-3.5B-SC	3.5	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-4.0B-SC	4.0	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-5.0B-SC	5.0	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-5.5B-SC	5.5	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-6.0B-SC	6.0	≤0.3	-45～+65	41.5±5	100G12times	8

Performance Curves

Vibration Characteristics

Impact Characteristics
