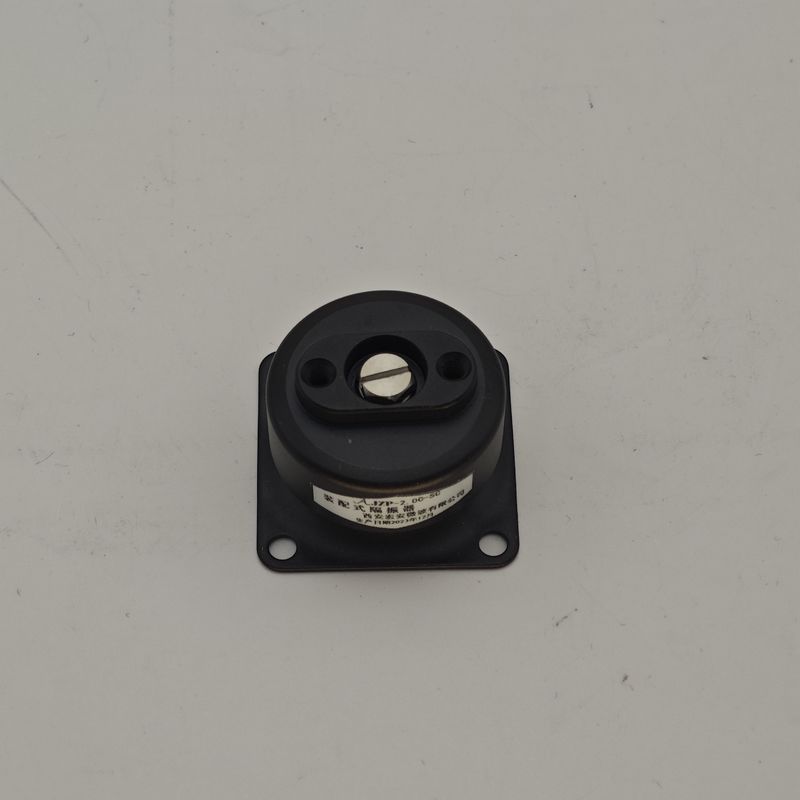

Name: JZP-3.0B-SC Rubber Shock Absorber with 3Kg Max Static Load 5-50Hz Vibration Frequency and 1 Year Warranty for Extreme Conditions
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JZP-3.0B-SC, el cual es un avión de combate.
Availability: InStock

En casa > productos > amortiguador de choque de goma >

JZP-3.0B-SC Rubber Shock Absorber with 3Kg Max Static Load 5-50Hz Vibration Frequency and 1 Year Warranty for Extreme Conditions

3Kg Max Static Load Rubber Shock Absorber

5-50Hz Vibration Frequency Vibration Isolator

1 Year Warranty JZP Series Shock Absorber

Lugar de origen:

Porcelana

Nombre de la marca:

Hoan

Número de modelo:

JZP-3.0B-SC, el cual es un avión de combate.

Contacta con nosotros

Solicitar una cita

JZP-3.0B-SC Rubber Shock Absorber with 3Kg Max Static Load 5-50Hz Vibration Frequency and 1 Year Warranty for Extreme Conditions

Detalles del producto

Forma:

Cilíndrico

Color:

Negro

Carga estática máxima:

3 kg

Frecuencia de vibración:

5-50HZ

Resistencia a la corrosión:

Resistente a la corrosión

Tipo de montaje:

Enhebrado

Característica:

amplia frecuencia de trabajo, larga vida útil

informe de prueba de maquinaria:

No disponible

Frecuencia natural:

7Hz-15Hz

Instalación fácil:

Simple y fácil de instalar

Material:

Goma

Característica:

Aislamiento de vibración

Garantía:

1 año

Reducción de las vibraciones:

Alto

Resaltar:

3Kg Max Static Load Rubber Shock Absorber

5-50Hz Vibration Frequency Vibration Isolator

1 Year Warranty JZP Series Shock Absorber

Condiciones de pago y envío

Cantidad de orden mínima

Condiciones de pago

LC, D/A, D/P, T/T, Western Union, MoneyGram

Productos relacionados

JZP-5.5B-SC Rubber Shock Absorber with Vibration Frequency 5-50Hz and Max Static Load 5.5Kg in 3-24 Inches Length

Obtenga el mejor precio

JZP-5.0B-SC Rubber Shock Absorber with 10Hz to 100Hz Frequency Range High Vibration Resistance for On-Vehicle Efficiency Validation New Product 2025

Obtenga el mejor precio

JZP-4.0B-SC Rubber Shock Absorber with M5 Mounting Holes 30mm Height and High Pressure Resistance for Vibration Isolation

Obtenga el mejor precio

JZP-3.5B-SC Modular Rubber Shock Absorber with 5-6KG Load Range 1:2 Compression Ratio and 40g/11ms Shock Resistance

Obtenga el mejor precio

Contacta con nosotros

86-29-88292913

Contacta ahora

Descripción del producto

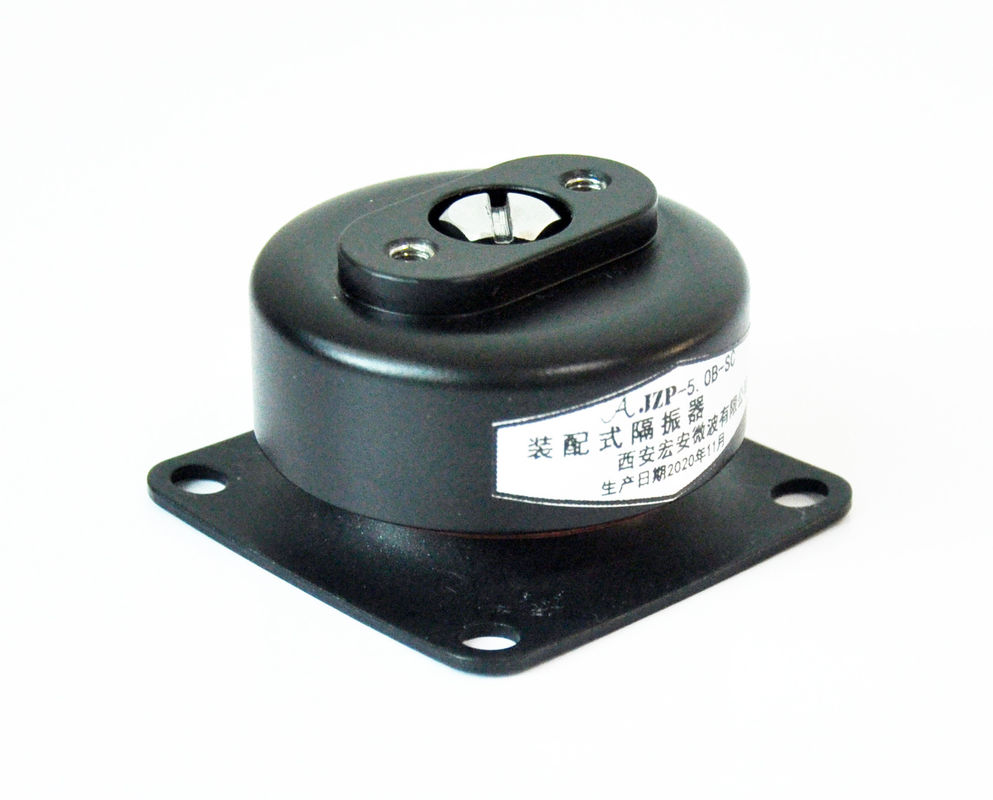

JZP-3.0B-SC Engineered for Extreme Conditions - The Best Rubber Shock Absorber for Military Mining Vehicles

JZP-B-SC Series

Tenacious Protection, Fearless of Rough Terrain - The Outstanding Performance of Xi'an Hoan's JZP Series Under Severe Road Conditions

Not all vehicles travel on smooth highways. Military vehicles, emergency rescue vehicles, mining trucks, and geological exploration vehicles often operate in extreme conditions. Muddy roads, potholes, and gravel paths create high-intensity impacts that test equipment durability. The JZP Series On-Vehicle Modular Vibration Isolators are specifically engineered to protect equipment in these harsh environments.

Shock Isolation: Protection Beyond Conventional Vibration

Unlike steady vibration, shock is an instantaneous, high-energy excitation that can cause structural damage. The JZP Series is designed with shock isolation as a core performance feature. Its damping materials and structural design extend impact duration through large deformation, significantly reducing peak acceleration (G-force) transmitted to equipment. When a vehicle hits a deep pothole, the JZP Series acts like an "airbag" for the equipment, absorbing most damaging forces.

Durability and Environmental Adaptability

In harsh environments like sandstorms, rain, snow, and salt spray, vibration isolator durability is crucial. The JZP Series uses high-quality weather-resistant materials with advanced surface treatments (galvanizing and Dacromet coating) for excellent corrosion resistance and anti-aging properties. These isolators resist both mechanical stress and chemical/environmental erosion, offering a service life far exceeding ordinary products.

Dimension Parameters

Model	D (mm)	H±1 (mm)	h (mm)	A±0.2 (mm)	B (mm)	d	d2	R	B (mm)
JZP-B-SC	46	30	21	40	50	M4	∅5.5	5	22

Technical Parameters

Model	Nominal Load (kg)	Static Displacement (mm)	Working Temperature (℃)	Resonance Frequency (Hz)	Impact Test	Valid Period (year)
JZP-1.0B-SC	1.0	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-1.5B-SC	1.5
JZP-2.0B-SC	2.0
JZP-2.5B-SC	2.5
JZP-3.0B-SC	3.0
JZP-3.5B-SC	3.5
JZP-4.0B-SC	4.0
JZP-5.0B-SC	5.0
JZP-5.5B-SC	5.5
JZP-6.0B-SC	6.0

Vibration and Impact Performance

Vibration Performance Curve

Impact Performance Curve
