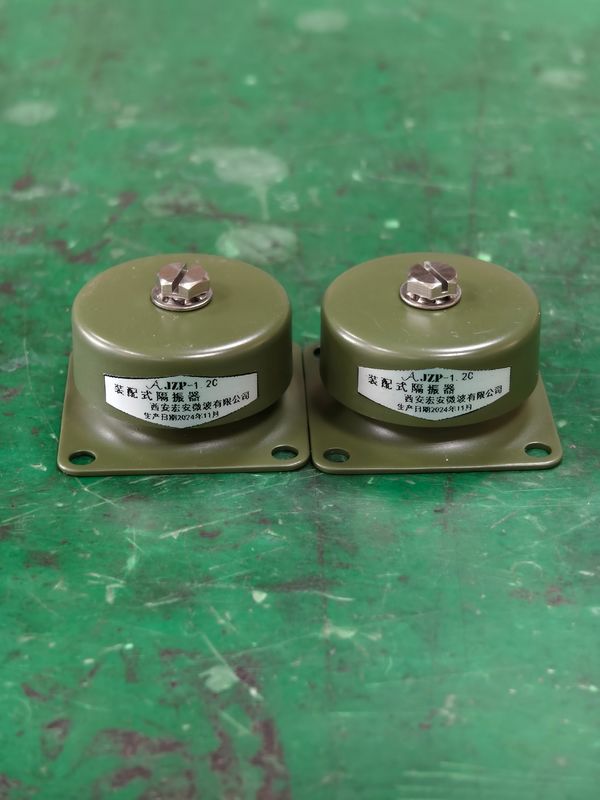

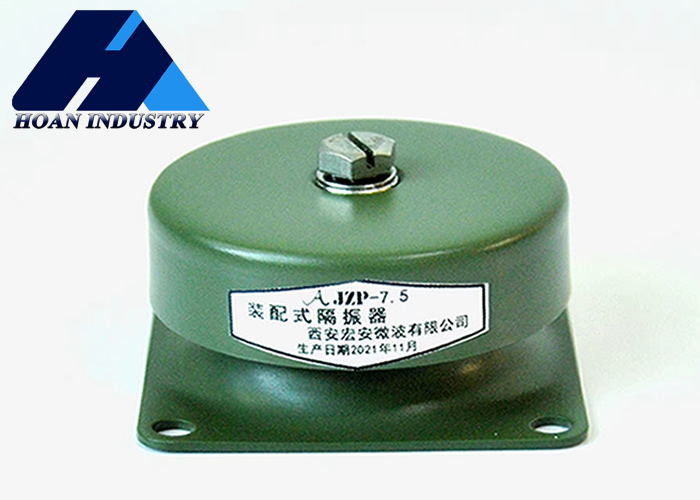

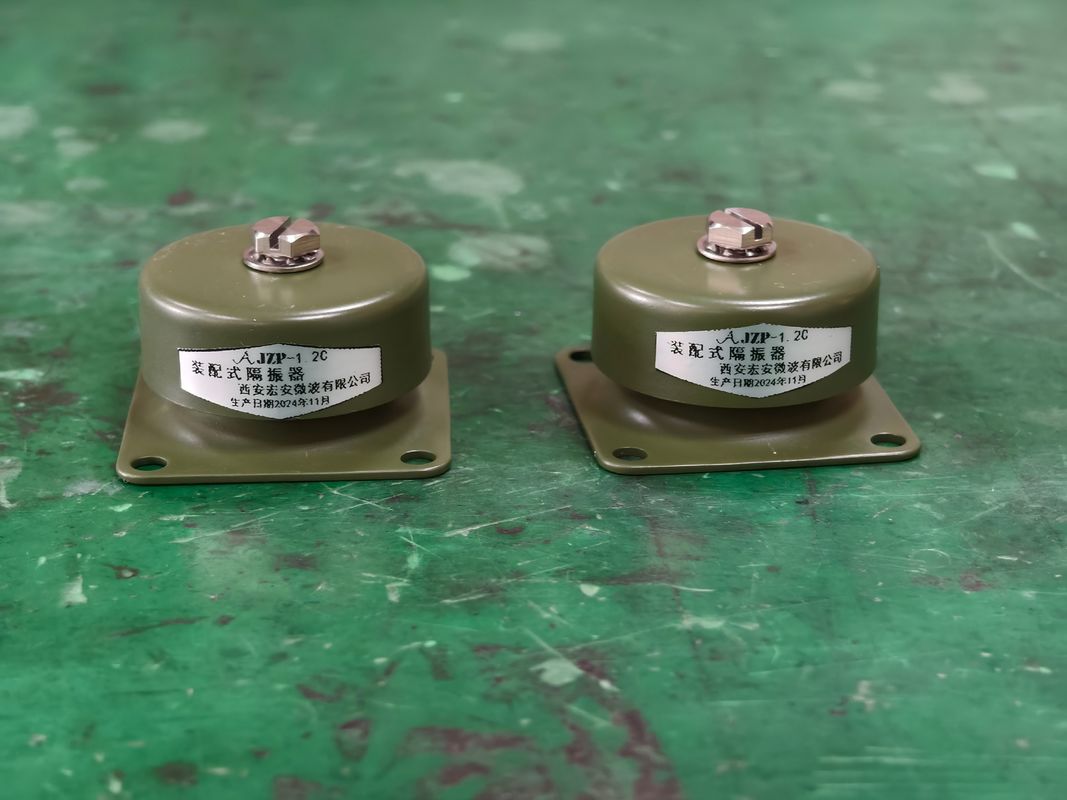

Name: JZP-4.0B-SC Rubber Shock Absorber with M5 Mounting Holes 30mm Height and High Pressure Resistance for Vibration Isolation
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: El JZP-4.0B-SC
Availability: InStock

En casa > productos > amortiguador de choque de goma >

JZP-4.0B-SC Rubber Shock Absorber with M5 Mounting Holes 30mm Height and High Pressure Resistance for Vibration Isolation

M5 Mounting Holes Rubber Shock Absorber

30mm Height Vibration Isolator

High Pressure Resistance JZP Series

Lugar de origen:

Porcelana

Nombre de la marca:

Hoan

Número de modelo:

El JZP-4.0B-SC

Contacta con nosotros

Solicitar una cita

JZP-4.0B-SC Rubber Shock Absorber with M5 Mounting Holes 30mm Height and High Pressure Resistance for Vibration Isolation

Detalles del producto

Característica:

amplia frecuencia de trabajo, larga vida útil

Longevidad:

De larga duración

País natal:

Porcelana

Uso:

Absorbe el choque y las vibraciones

Material:

Goma

Reducción de ruido:

Eficaz para reducir el ruido

informe de prueba de maquinaria:

No disponible

Dureza:

Personalizado

Resistencia a la presión:

Alto

Altura:

30 mm

Resistencia:

Químicos, calor y clima

Tipo de aislamiento de vibración:

Pasivo

Costo:

Asequible

Agujeros de montaje:

Resaltar:

M5 Mounting Holes Rubber Shock Absorber

30mm Height Vibration Isolator

High Pressure Resistance JZP Series

Condiciones de pago y envío

Cantidad de orden mínima

Condiciones de pago

Moneygram, Western Union, T/T, D/P, D/A, L/C

Productos relacionados

JZP-5.5B-SC Rubber Shock Absorber with Vibration Frequency 5-50Hz and Max Static Load 5.5Kg in 3-24 Inches Length

Obtenga el mejor precio

Amortiguador de goma JZP-5.0B-SC con rango de frecuencia de 10Hz a 100Hz, alta resistencia a la vibración para la validación de la eficiencia en vehículos, nuevo producto 2025

Obtenga el mejor precio

JZP-4.0B-SC Rubber Shock Absorber with M5 Mounting Holes 30mm Height and High Pressure Resistance for Vibration Isolation

Obtenga el mejor precio

JZP-3.5B-SC Absorbedor de choques modular de caucho con rango de carga de 5-6KG 1:2 relación de compresión y resistencia al choque de 40g/11ms

Obtenga el mejor precio

Contacta con nosotros

Contacta ahora

Descripción del producto

JZP-4.0B-SC The Flexible Adaptability of Rubber Shock Absorber for Vibration Isolation Solutions

JZP-B-SC Series

Customized Vibration Isolation Solutions

While standardized products meet most requirements, specialized equipment with unique specifications or extreme performance demands require customized protection. Xi'an Hoan Microwave Co., Ltd. designed the JZP Series with powerful customization capabilities to deliver tailored vibration isolation solutions.

From Product to Solution

Xi'an Hoan provides comprehensive consulting services, analyzing equipment specifications including weight, dimensions, center of gravity, sensitive frequency bands, and operating environment. Engineers optimize selections from the JZP Series or modify existing structures with adjustments to:

Mounting hole positions
Interface types
Load-bearing stiffness

Specialized Applications

For precision instruments (electron microscopes, spectral analyzers) or heavy equipment (large battery packs, hydraulic units), Xi'an Hoan develops specialized models featuring:

Custom damping material formulations
Multi-stage vibration isolation structures
Active/semi-active control technologies

Dimension Parameters

Model	D (mm)	H±1 (mm)	h (mm)	A±0.2 (mm)	B (mm)	d	d2	R	B (mm)
JZP-B-SC	46	30	21	40	50	M4	∅5.5	5	22

Technical Parameters

Model	Nominal Load (kg)	Static Displacement (mm)	Working Temperature (℃)	Resonance Frequency (Hz)	Impact Test	Valid Period (year)
JZP-1.0B-SC	1.0	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-1.5B-SC	1.5	Same as above
JZP-2.0B-SC	2.0	Same as above
JZP-2.5B-SC	2.5	Same as above
JZP-3.0B-SC	3.0	Same as above
JZP-3.5B-SC	3.5	Same as above
JZP-4.0B-SC	4.0	Same as above
JZP-5.0B-SC	5.0	Same as above
JZP-5.5B-SC	5.5	Same as above
JZP-6.0B-SC	6.0	Same as above

Performance Curves

Vibration

Impact
