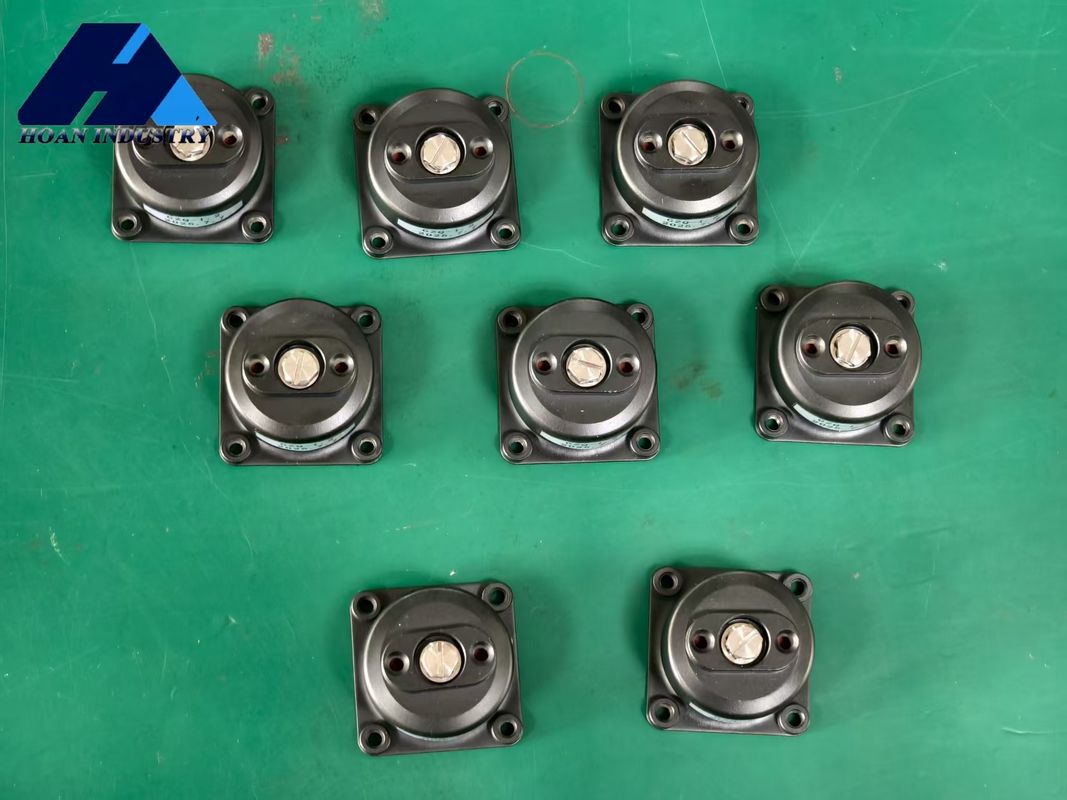

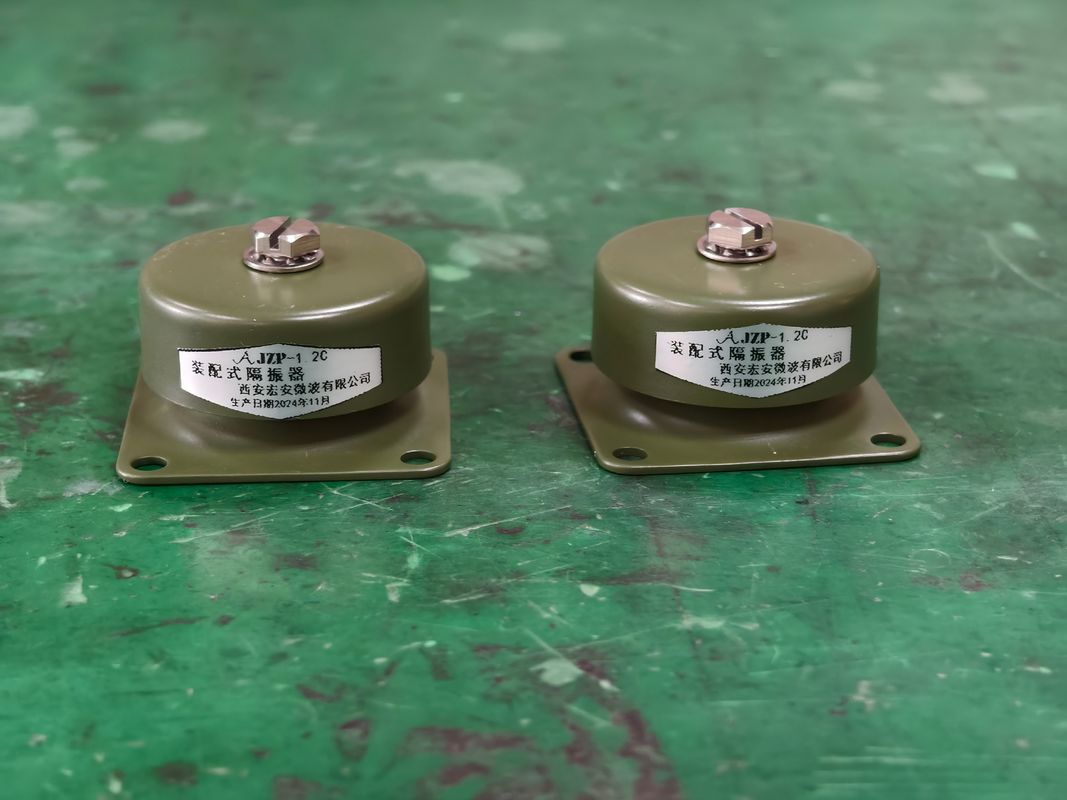

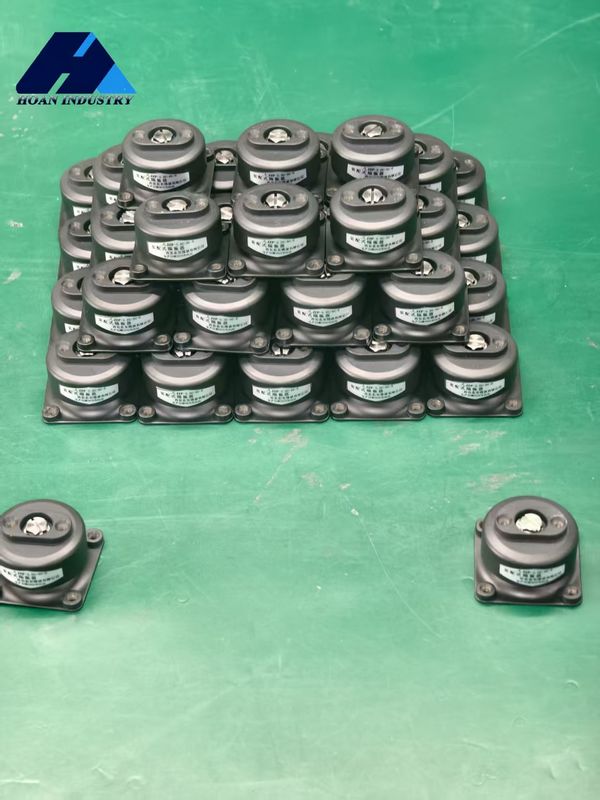

Name: JZP-5.5B-SC Rubber Shock Absorber with Vibration Frequency 5-50Hz and Max Static Load 5.5Kg in 3-24 Inches Length
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JZP-5.5B-SC. ¿Qué quiere decir?
Availability: InStock

En casa > productos > amortiguador de choque de goma >

JZP-5.5B-SC Rubber Shock Absorber with Vibration Frequency 5-50Hz and Max Static Load 5.5Kg in 3-24 Inches Length

Vibration Frequency 5-50Hz Rubber Shock Absorber

Max Static Load 5.5Kg Vibration Isolator

3-24 Inches Length JZP Series

Lugar de origen:

Porcelana

Nombre de la marca:

Hoan

Número de modelo:

JZP-5.5B-SC. ¿Qué quiere decir?

Contacta con nosotros

Solicitar una cita

JZP-5.5B-SC Rubber Shock Absorber with Vibration Frequency 5-50Hz and Max Static Load 5.5Kg in 3-24 Inches Length

Detalles del producto

Resistencia a la intemperie:

Excelente

Frecuencia de vibración:

5-50HZ

Instalación:

Fácil de instalar

Appliocation:

Autos, maquinaria, motores

Industrias aplicables:

Energía y minería

Resistencia:

Químicos, calor y clima

Frecuencia de aislamiento:

5Hz

Características:

Buenos elásticos, llevan resistencia

Longitud:

3-24 pulgadas

Flexibilidad:

Flexible

Característica:

Aislamiento de vibración

Carga estática máxima:

5.5 kg

Resaltar:

Vibration Frequency 5-50Hz Rubber Shock Absorber

Max Static Load 5.5Kg Vibration Isolator

3-24 Inches Length JZP Series

Condiciones de pago y envío

Cantidad de orden mínima

Condiciones de pago

LC, D/A, D/P, T/T, Western Union, MoneyGram

Productos relacionados

JZP-5.5B-SC Rubber Shock Absorber with Vibration Frequency 5-50Hz and Max Static Load 5.5Kg in 3-24 Inches Length

Obtenga el mejor precio

Amortiguador de goma JZP-5.0B-SC con rango de frecuencia de 10Hz a 100Hz, alta resistencia a la vibración para la validación de la eficiencia en vehículos, nuevo producto 2025

Obtenga el mejor precio

JZP-4.0B-SC Rubber Shock Absorber with M5 Mounting Holes 30mm Height and High Pressure Resistance for Vibration Isolation

Obtenga el mejor precio

JZP-3.5B-SC Absorbedor de choques modular de caucho con rango de carga de 5-6KG 1:2 relación de compresión y resistencia al choque de 40g/11ms

Obtenga el mejor precio

Contacta con nosotros

Contacta ahora

Descripción del producto

JZP-5.5B-SC Rubber Shock Absorbers for Easy Installation and Maintenance with User-Centric Design

JZP-B-SC Series

Easy Installation, Hassle-Free Maintenance - User-Centric Design of the JZP Series Vibration Isolators

A high-quality engineering product should not only deliver outstanding performance but also offer a superior user experience. When designing the JZP Series On-Vehicle Modular Vibration Isolators, Xi'an Hoan Microwave Co., Ltd. fully considered the convenience of installation, commissioning, and maintenance, striving to make advanced technology simple and user-friendly.

The Essence of "Modular" Design

The "modular" feature of the JZP Series means it typically comes as a complete, standardized unit. Users do not need to mix damping materials on-site or perform complex structural assembly. In most cases, only common tools and bolt connections are required to firmly mount equipment on the vehicle base via the JZP Vibration Isolators. This significantly lowers the technical threshold and time cost of installation, while avoiding performance degradation caused by improper installation.

Visualization and Maintainability

Many products in the JZP Series are designed with intuitive markings and error-proof structures to ensure correct installation orientation. Their structure is usually easy to inspect, allowing users to visually check for obvious aging or damage to elastic components. For applications requiring regular inspection or replacement, the modular design enables quick and cost-effective replacement of individual vibration isolators--no need to disassemble the entire equipment.

Dimension Parameter Table

Model	D (mm)	H±1 (mm)	h (mm)	A±0.2 (mm)	B (mm)	d	d2	R	B (mm)
JZP-B-SC	46	30	21	40	50	M4	∅5.5	5	22

Technical Parameter Table

Model	Nominal Load (kg)	Static Displacement (mm)	Working Temperature (℃)	Resonance Frequency (Hz)	Impact Test	Valid Period (year)
JZP-1.0B-SC	1.0	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-1.5B-SC	1.5
JZP-2.0B-SC	2.0
JZP-2.5B-SC	2.5
JZP-3.0B-SC	3.0
JZP-3.5B-SC	3.5
JZP-4.0B-SC	4.0
JZP-5.0B-SC	5.0
JZP-5.5B-SC	5.5
JZP-6.0B-SC	6.0

Vibration and Impact Curve of JZP-B-SC Series

Vibration

Impact
