JGX-0958A-43A Steel Wire Rope Vibration Isolator With 304 Stainless Steel Connectors And Fluororubber Sleeves

JGX-0958A-43A Wire Rope Vibration Isolator

Fluororubber Sleeves Wire Rope Vibration Isolator

Nombre de la marca:

Hoan

Contacta con nosotros

Solicitar una cita

JGX-0958A-43A Steel Wire Rope Vibration Isolator With 304 Stainless Steel Connectors And Fluororubber Sleeves

Detalles del producto

Certificaciones:

ISO 9001, RoHs

Agujeros de montaje:

Longitud de la cuerda de alambre:

6 pulgadas

Capacidad de carga máxima:

100 kg de peso

Temperatura de trabajo:

-55~120

Aislamiento de vibraciones:

El hasta 90%

Duración:

6-12 pulgadas

Rigidez axial:

50 N/mm

Tensión máxima:

0.5 pulgadas

Componentes básicos:

El rodamiento, la bomba

Palabras clave de producto:

Dispositivos para el aislamiento de la fricción

Método de Instalación:

horizontal o vertical

Función:

Anti choque

Resaltar:

JGX-0958A-43A Wire Rope Vibration Isolator

Fluororubber Sleeves Wire Rope Vibration Isolator

Condiciones de pago y envío

Condiciones de pago

El dinero se puede obtener de la siguiente manera:

Productos relacionados

El video

JGX-0400A-31.5A aislador de vibración de cuerda de alambre montaje vertical para proteger su equipo de las vibraciones y golpes

Obtenga el mejor precio

El video

Aislador de vibración de cuerda de alambre de acero inoxidable para aire y comunicación a prueba de agua y durabilidad JGX-0400-31.5A

Obtenga el mejor precio

JGX-0648D-56A Aislador de vibración de cuerda de alambre meticulosamente diseñado para un rendimiento óptimo en varios dispositivos

Obtenga el mejor precio

JGX-0648A-45A aislador de vibración de cuerda de alambre reducción efectiva de vibraciones para motores de automóviles

Obtenga el mejor precio

Contacta con nosotros

86-29-88292913

Contacta ahora

Descripción del producto

JGX-0958 Series

Steel Wire Rope Vibration Isolator JGX-0958A-43A builds multi-dimensional performance barriers with professional technical parameters! Woven from aviation-grade galvanized steel wire ropes into a composite damping structure, its original spiral cross-winding process gives it nonlinear vibration isolation characteristics in three degrees of freedom, with a natural frequency as low as 3-6Hz and vibration isolation efficiency exceeding 96%, precisely isolating low-frequency vibrations of precision equipment. Certified by UL, it withstands -60℃~180℃, maintaining stable damping performance in extreme temperature differences, and its impact resistance reaches 50G, effectively buffering impact loads during construction machinery start-stop.

Key performance advantages lie in three core dimensions:

Precision Isolation: Optimized for 430N rated load, with resonance amplification factor ≤2.5, suitable for vibration-sensitive scenarios like optical instruments and medical equipment;
Environmental Adaptability: 304 stainless steel connectors with fluororubber protective sleeves resist salt spray corrosion for over 1,000 hours, extending service life by 3 times in humid and acid-base environments;
Long-term Reliability: Passed 20 million fatigue cycles without attenuation, dynamic stiffness variation rate <5%, far exceeding industry averages, enabling 10-year maintenance-free operation. From aerospace equipment to high-end manufacturing, JGX-0958A-43A safeguards equipment operation with military-grade performance.

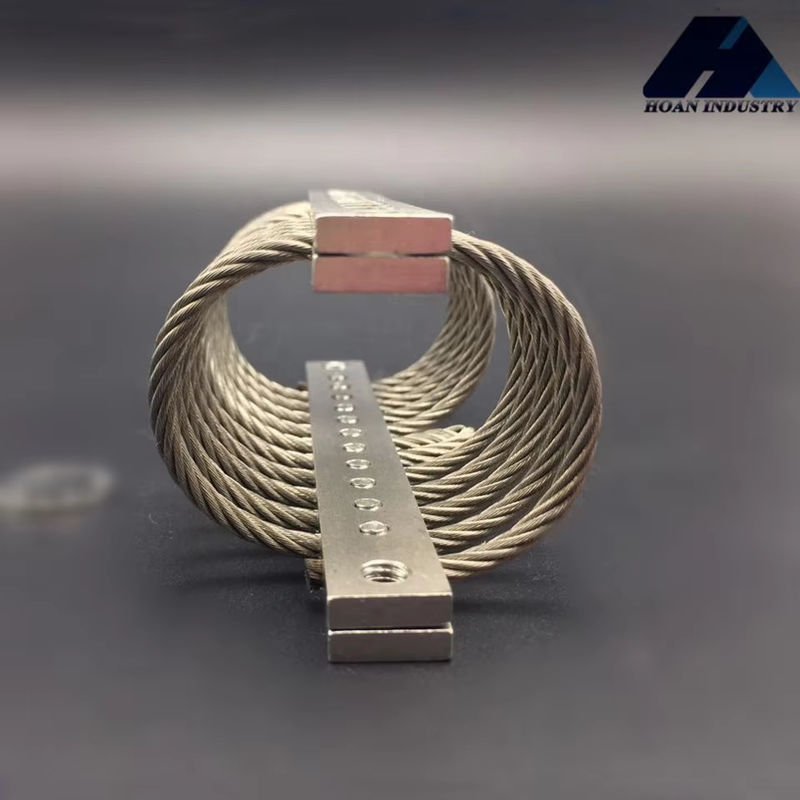

JGX-0958A-43A Steel Wire Rope Vibration Isolator With 304 Stainless Steel Connectors And Fluororubber Sleeves 0

Static-Load Curve

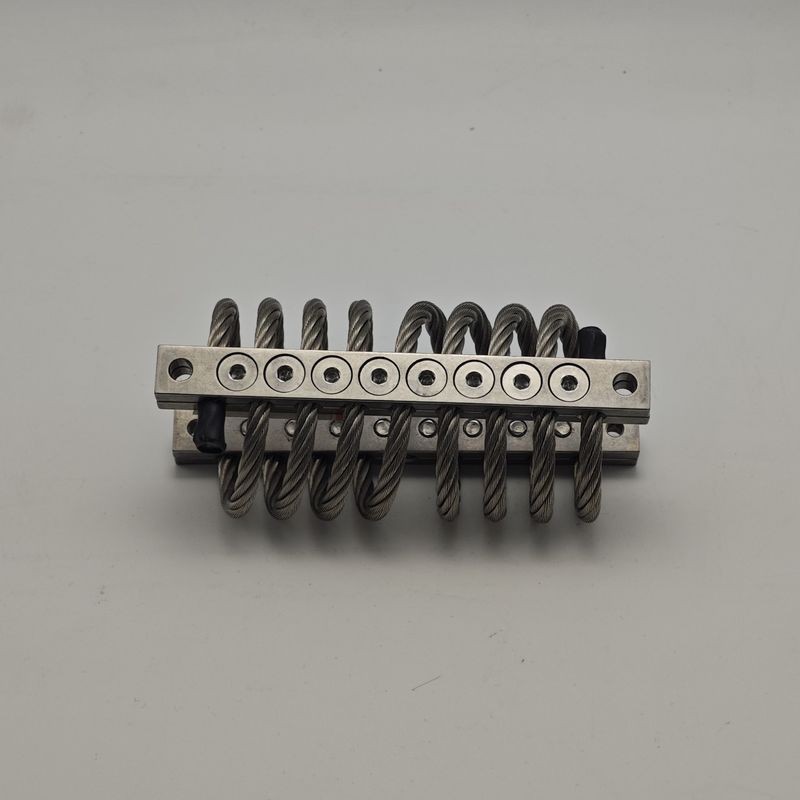

JGX-0958A-43A Steel Wire Rope Vibration Isolator With 304 Stainless Steel Connectors And Fluororubber Sleeves 1

No	Model	Max Static Load (kg)	Max Defelection (mm)	Kv(Vibration) (KN/m)	Ks(Shock) (KN/M)
1	JGX-0958A-149A	149	34.0	366	179
2	JGX-0958A-138A	138	37.1	320	152
3	JGX-0958A-108A	108	40.1	242	110
4	JGX-0958A-99A	99	44.7	205	91
5	JGX-0958A-95A	95	49.8	182	79
6	JGX-0958A-54A	54	66.0	86	33
7	JGX-0958A-43A	43	68.1	67	26

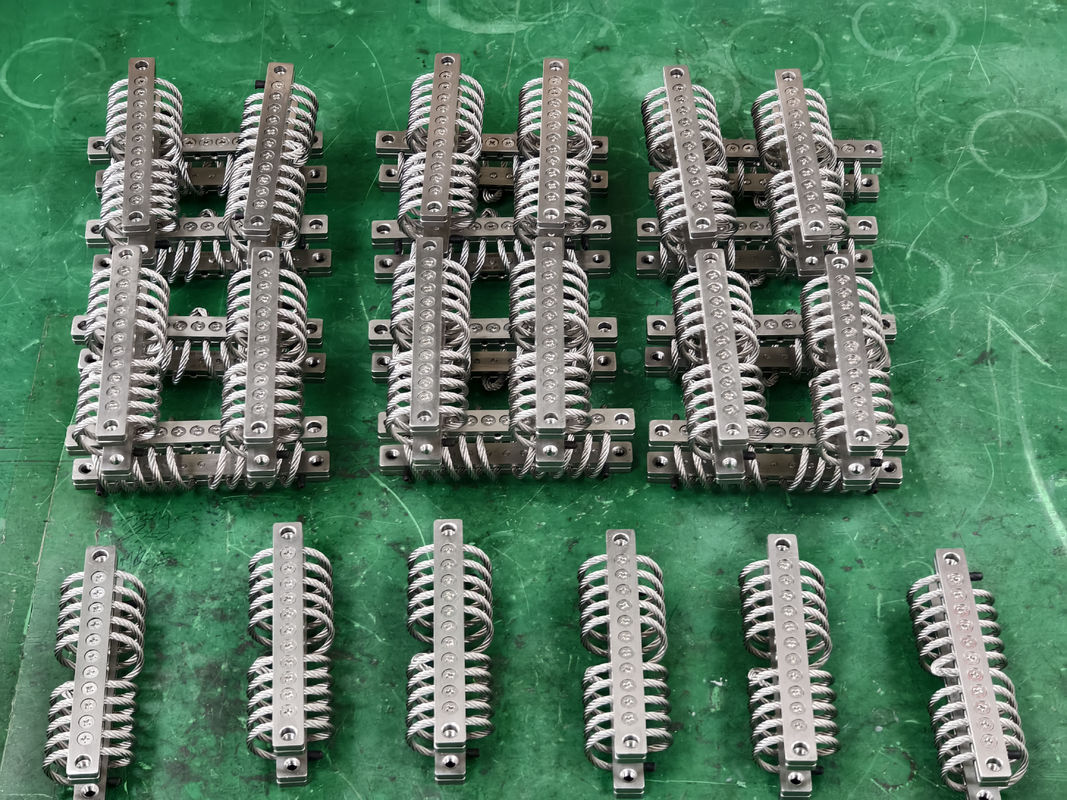

JGX-0958A-43A Steel Wire Rope Vibration Isolator With 304 Stainless Steel Connectors And Fluororubber Sleeves 2

No	Model	Max Static Load (kg)	Max Defelection (mm)	Kv(Vibration) (KN/m)	Ks(Shock) (KN/M)
1	JGX-0958A-149A	120.3	47.8	236	103
2	JGX-0958A-138A	111.2	51.8	208	88
3	JGX-0958A-108A	90.8	55.9	159	65
4	JGX-0958A-99A	84.0	63.0	137	54
5	JGX-0958A-95A	79.4	71.1	123	47
6	JGX-0958A-54A	47.7	91.9	60	21
7	JGX-0958A-43A	38	95	47	16

JGX-0958A-43A Steel Wire Rope Vibration Isolator With 304 Stainless Steel Connectors And Fluororubber Sleeves 3

No	Model	Max Static Load (kg)	Max Defelection (mm)	Kv(Vibration) (KN/m)	Ks(Shock) (KN/M)
1	JGX-0958A-149A	93.1	36.1	130	130
2	JGX-0958A-138A	88.5	39.1	112	112
3	JGX-0958A-108A	68.1	42.2	77	77
4	JGX-0958A-99A	63.6	47.2	65	65
5	JGX-0958A-95A	61.3	52.8	60	60
6	JGX-0958A-54A	27.2	68.1	27	27
7	JGX-0958A-43A	20.4	71.7	19	19
