JGX-0160D-4.8A Wire Rope Vibration Isolator — Technical Overview

What Is the JGX-0160D-4.8A?

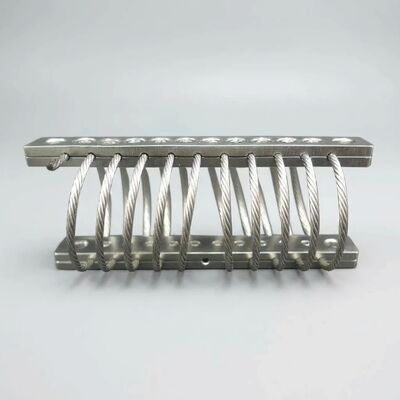

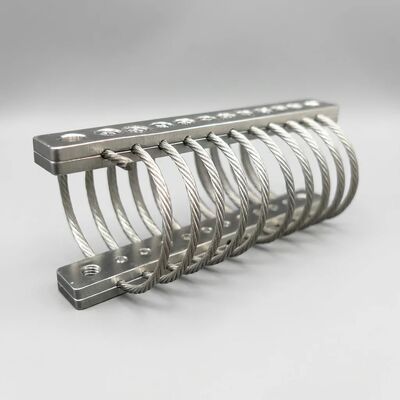

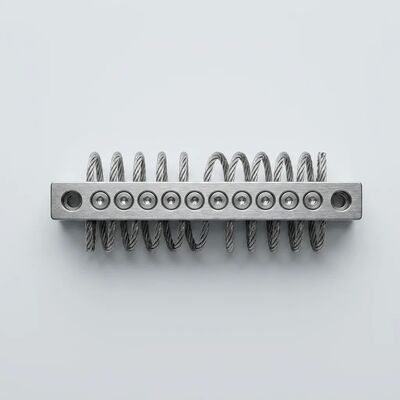

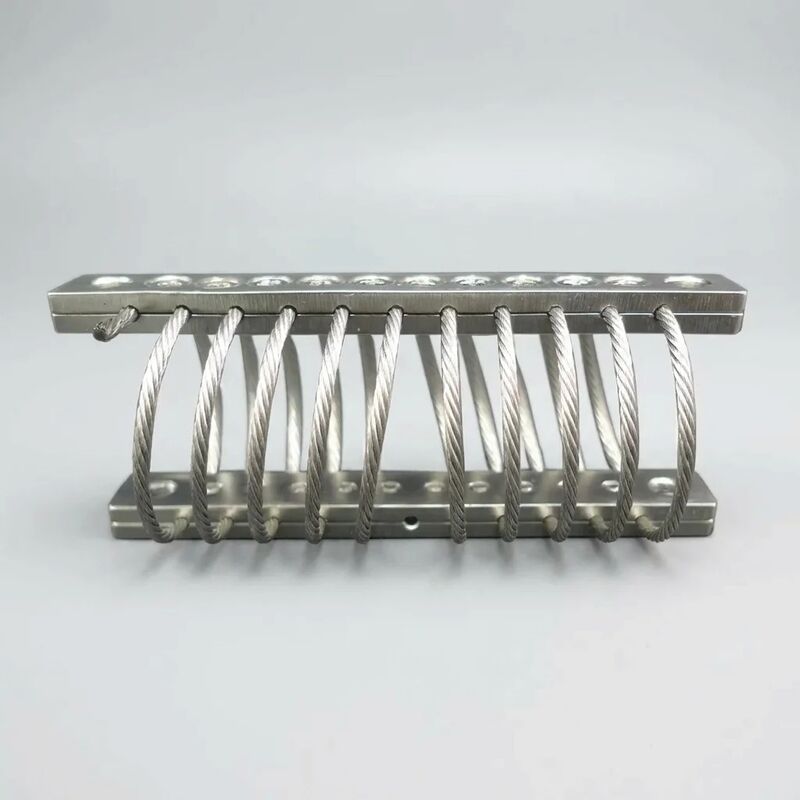

The JGX-0160D-4.8A is a precision-engineered wire rope vibration isolator that uses a helically wound 4.8mm stainless steel 304 wire rope as its damping element. Unlike conventional rubber mounts or coil spring isolators, it provides all-axis multi-directional vibration isolation — meaning it attenuates energy simultaneously in compression, shear, and roll without requiring separate isolators for each axis. With a rated static load capacity of 160 kg per mount, the JGX-0160D-4.8A is suited for medium-duty industrial equipment where multi-directional shock and continuous vibration threaten component reliability.

How Wire Rope Damping Works

The JGX-0160D-4.8A relies on two complementary damping mechanisms that operate in parallel:

• Coulomb (Friction) Damping: As the wire rope flexes under dynamic load, individual strands within the 7*19 wire construction rub against one another, converting kinetic energy into negligible heat through dry friction. This mechanism is amplitude-dependent — larger deflections produce greater energy dissipation.
• Hysteretic Damping: The stainless steel wire rope undergoes cyclic elastic deformation under vibration, creating a stress-strain hysteresis loop that absorbs energy across each loading cycle. This provides consistent broadband attenuation from low-frequency structural resonance to high-frequency machinery vibration.

Together, these mechanisms achieve a damping ratio of 0.15–0.25 and deliver isolation efficiency exceeding 95% at frequencies above 25 Hz under nominal load — performance that remains stable across the full -40°C to +120°C operating range without the temperature-dependent stiffness changes typical of elastomeric isolators.

Why Engineers Choose the JGX-0160D-4.8A

1. Genuine All-Axis Isolation Without Compromise

Most conventional isolators are optimized for a single load direction. The JGX-0160D-4.8A wire rope helix geometry inherently responds to excitation from any angle — vertical, lateral, or torsional — with the same damping mechanism. This makes it especially valuable for equipment mounted on non-rigid structures, mobile platforms, or locations where vibration sources are unpredictable in direction.

2. Superior Resonance Suppression Across a Broad Spectrum

Structural resonance occurs when excitation frequency aligns with a system's natural frequency, amplifying vibration to destructive levels. The JGX-0160D-4.8A addresses this through its nonlinear stiffness characteristic: as deflection increases, the wire rope geometry progressively stiffens, shifting the system's natural frequency away from resonance conditions. With a natural frequency range of approximately 8–12 Hz under rated load, this isolator effectively decouples equipment from common industrial excitation sources (motor rotation, pump pulsation, compressor reciprocation) before resonance can develop.

3. Maintenance-Free Operation for the Life of the Installation

The all-metal construction eliminates every point of degradation that plagues traditional isolators: no rubber to oxidize and crack, no hydraulic fluid to leak, no coil spring to fatigue and sag, no bonded joint to delaminate. The JGX-0160D-4.8A requires zero scheduled maintenance — no lubrication, no re-torquing, no visual inspection cycle beyond what is already in the equipment maintenance plan. Fatigue testing demonstrates over 10 million cycles at rated load with no measurable change in damping performance.

4. Predictable Performance Across Temperature Extremes

While rubber isolators stiffen in cold climates (losing isolation effectiveness) and soften in heat (risking excessive sag), the JGX-0160D-4.8A stainless steel wire rope exhibits negligible stiffness variation between -40°C and +120°C. This thermal stability eliminates the need for seasonal adjustment and ensures consistent vibration protection in outdoor installations, unheated facilities, and high-temperature equipment applications.

Technical Specifications

Typical Industrial Applications

• HVAC & Air Handling Units: Isolates fan and compressor vibration from building structures, reducing low-frequency noise transmission in commercial and industrial facilities.
• Industrial Generators: Protects generator sets from self-induced vibration and external shock, extending alternator bearing life.
• Reciprocating Compressors: Addresses the characteristic pulsation frequencies of piston-type compressors where single-axis isolators fail to capture lateral oscillation modes.
• Precision Metrology Equipment: CMMs, optical inspection systems, and laboratory balances benefit from the all-axis isolation that maintains measurement accuracy in factory-floor environments.
• Control Cabinets & Electrical Enclosures: Protects sensitive PLCs, VFDs, and relay logic from ambient machinery vibration that can cause contact chatter and premature failure.
• Industrial Pump Assemblies: Isolates both motor-driven and engine-driven pump sets in water treatment, chemical processing, and oil transfer applications.

Quality Assurance & Testing

Every JGX-0160D-4.8A isolator is manufactured under ISO 9001:2015 certified quality management. Production testing includes:

• Static load deflection verification at 100% of rated capacity
• Wire rope tension uniformity inspection across all 6 coils
• Dimensional conformance to design tolerances
• Surface finish inspection for electropolishing consistency
• Batch traceability with full material certification available upon request

Custom testing protocols — including specific frequency sweeps, shock pulse testing, or extended environmental exposure — can be accommodated for OEM qualification requirements.

Installation Notes

The JGX-0160D-4.8A mounts via the base plate holes in a Base-to-Base or Base-to-Equipment configuration. For optimal performance:

• Ensure the mounting surface is flat and rigid to prevent preload distortion
• Distribute loads evenly when using multiple isolators under a single equipment base
• Verify that the total supported weight falls within 40–80% of the combined rated capacity for best isolation efficiency
• Allow adequate clearance around the wire rope coils for unrestricted deflection under shock loading

Frequently Asked Questions

Q: How does the JGX-0160D-4.8A compare to rubber mounts?
Rubber mounts degrade predictably over time due to oxidation, ozone exposure, and cyclic fatigue — typically requiring replacement every 3–5 years in industrial environments. The all-metal JGX-0160D-4.8A has no degradation mechanism under normal service and provides more consistent stiffness across temperature extremes.

Q: Can this isolator be used outdoors?
Yes. The SS304 material and electropolished finish provide strong resistance to rain, humidity, and UV exposure. For installations in salt-laden coastal or offshore atmospheres, please refer to our harsh-environment application guide (see JGX-0160D-4.8A Marine/Offshore product page).

Q: What is the minimum order quantity?
Standard orders start at 10 pieces. For prototype or qualification quantities, please contact our sales team for sampling arrangements.

Q: Is custom load calibration available?
Yes — the wire rope length, coil count, and mounting geometry can be adapted for specific load requirements. Contact us with your target load range and mounting constraints for a custom configuration proposal.
