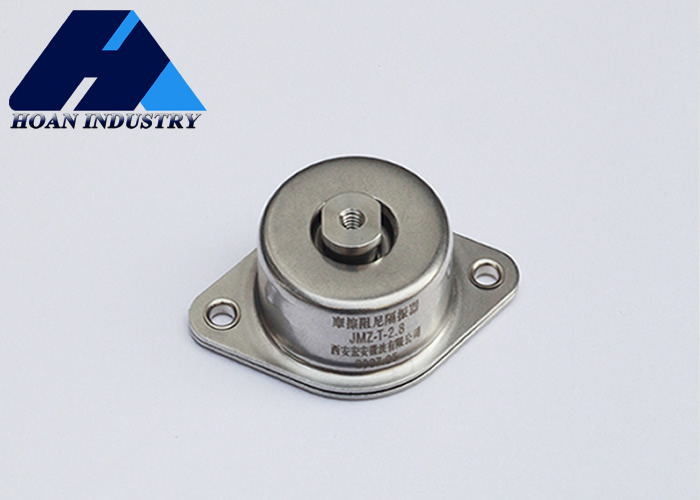

Name: JMZ-T-2.6 Friction Damping Vibration Isolator with Composite Friction Materials 60mm Overall Width and 1 Year Warranty
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: Es el JMZ-T-2.6
Availability: InStock

En casa > productos > El aislante de resorte >

JMZ-T-2.6 Friction Damping Vibration Isolator with Composite Friction Materials 60mm Overall Width and 1 Year Warranty

Composite Friction Materials Vibration Isolator

60mm Overall Width Spring Isolator

1 Year Warranty Friction Damping Vibration Isolator

Lugar de origen:

PORCELANA

Nombre de la marca:

Hoan

Número de modelo:

Es el JMZ-T-2.6

Contacta con nosotros

Solicitar una cita

JMZ-T-2.6 Friction Damping Vibration Isolator with Composite Friction Materials 60mm Overall Width and 1 Year Warranty

Detalles del producto

Disponibilidad:

Ampliamente disponible

Product_Name:

El aislante de resorte

Ancho general:

60 mm

Método de instalación:

Montado o incrustado

Tipo de montaje:

Placa superior

Estructura:

Helicoidal

Mantenimiento:

Bajo mantenimiento

Resistencia a la conmoción:

Fuerte

Tipo:

Aislador de vibración

Después del servicio de garantía:

Soporte en línea

Informe de prueba de maquinaria:

No disponible

Garantía:

1 año

Estilo de diseño:

Industrial

certificaciones:

Lista UL, cumple con la normativa RoHS

Aplicaciones:

Monta de motor industrial

Resaltar:

Composite Friction Materials Vibration Isolator

60mm Overall Width Spring Isolator

1 Year Warranty Friction Damping Vibration Isolator

Condiciones de pago y envío

Cantidad de orden mínima

Condiciones de pago

Moneygram, Western Union, T/T, D/P, D/A, L/C

Productos relacionados

86-29-88292913

Contacta ahora

Descripción del producto

JMZ-T-2.6 Friction Damping Vibration Isolators

Superior Performance with Composite Friction Materials and Stable Damping Force

JMZ-T Series Overview

Independently developed by Xi'an Hoan Microwave Co., Ltd., the JMZ-T Series Friction Damping Vibration Isolators integrate innovative technologies for exceptional vibration control performance.

Key Technical Advantages

Advanced Friction Damping Mechanism: Provides stable damping force unaffected by temperature changes with zero maintenance requirements
Composite Friction Materials: Specially processed materials ensure high friction coefficient with smooth force variation for optimal response to both micro-vibrations and large shocks
Hybrid Structural Design: Combines metal spring load capacity with friction component energy dissipation for independent stiffness and damping adjustment
3D Vibration Isolation: Effective vibration control in all directions for comprehensive protection
Rigorous Quality Control: Comprehensive testing ensures compliance with highest industry standards

Technical Specifications

Model	Pz-Direction Load (kg)	Displacement Under Maximum Load (mm)	d	Weight (g)	Vibration test	Shock test	Resonance frequency (Hz)	Operating temperature range (℃)
JMZ-T-1.4	1.4	≤0.6	ST4*0.7/ M7-7H	≤58	＜4	30g,11ms	＜30	-65～+120
JMZ-T-2.6	2.6	See JMZ-T-1.4 for other specifications
JMZ-T-2.8	2.8	See JMZ-T-1.4 for other specifications

Performance Curves

Vibration curve:

Impact curve:

Application Example
