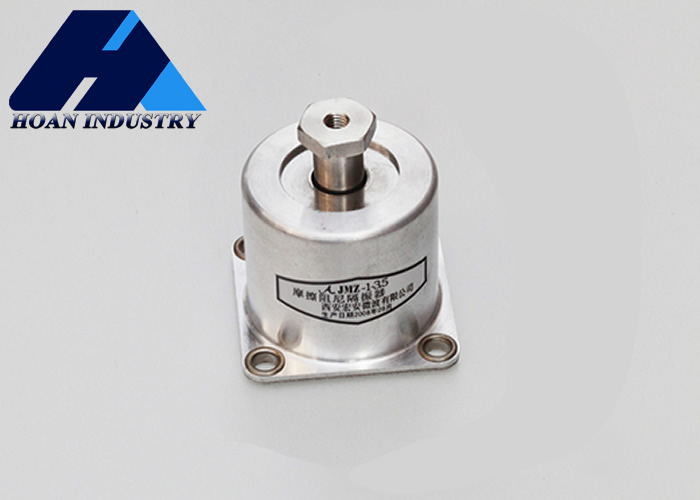

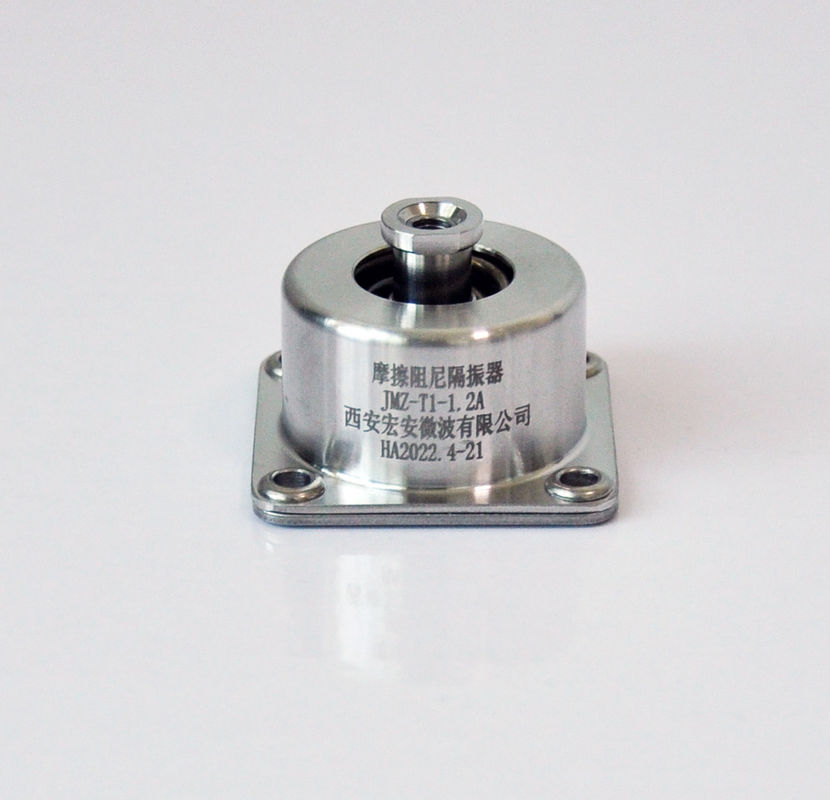

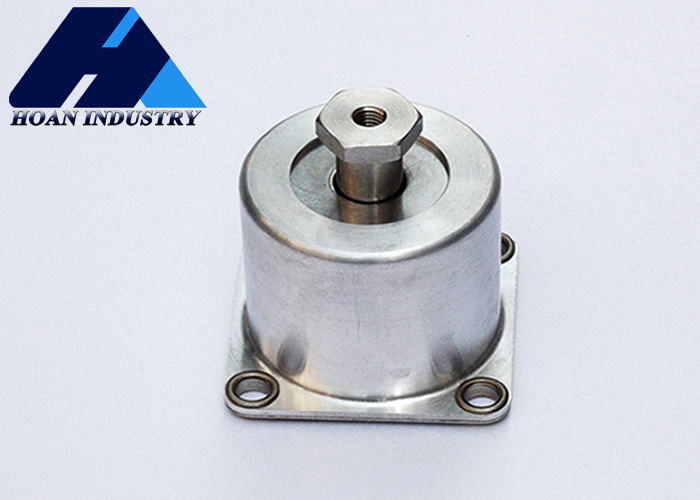

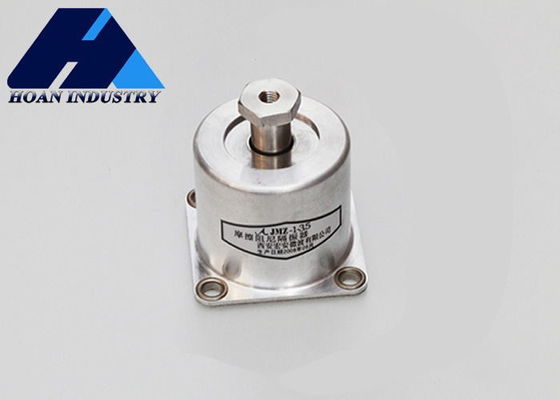

Name: JMZ-T Series Spring Isolator with Up to 95% Isolation Efficiency for Precision Manufacturing
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JMZ-T1-0.3
Availability: InStock

En casa > productos > El aislante de resorte >

JMZ-T Series Spring Isolator with Up to 95% Isolation Efficiency for Precision Manufacturing

JMZ-T Series Spring Isolator

95% Isolation Efficiency Spring Isolator

Precision Manufacturing Spring Isolator

Lugar de origen:

PORCELANA

Nombre de la marca:

Hoan

Número de modelo:

JMZ-T1-0.3

Contacta con nosotros

Solicitar una cita

JMZ-T Series Spring Isolator with Up to 95% Isolation Efficiency for Precision Manufacturing

Detalles del producto

Compatibilidad:

Compatible con varios tipos de maquinaria y equipos

Durabilidad:

De larga duración

Capacidad de ajuste:

Ajustable

Reducción de ruido:

Eficaz

Características:

Alta capacidad de carga, excelente aislamiento de vibración, duradero

Dimensiones:

Varios tamaños disponibles

Color:

Plata

Informe de prueba de maquinaria:

No disponible

Eficiencia de aislamiento:

El hasta 95%

Modelo:

JMZ-T

Uso:

Aislamiento de vibración

Mantenimiento:

Bajo

Resistencia a la conmoción:

Fuerte

Resaltar:

JMZ-T Series Spring Isolator

95% Isolation Efficiency Spring Isolator

Precision Manufacturing Spring Isolator

Condiciones de pago y envío

Cantidad de orden mínima

Condiciones de pago

L/C, D/A, D/P, Western Union, Moneygram, T/T

Productos relacionados

JMZ-T1-1.4 32mm Overall Width Spring Isolator with 1 Year Warranty and High Resilience for Industrial Vibration Isolation

Obtenga el mejor precio

JMZ-T1-1.2 Spring Isolator with 95% Isolation Efficiency 32mm Overall Width and UL Listed for Vibration Isolation

Obtenga el mejor precio

JMZ-T1-0.6 Spring Isolator with High Resilience and Strong Shock Resistance for Durable Vibration Control

Obtenga el mejor precio

JMZ-T1-0.45 Friction Damping Vibration Isolator with Up to 95% Isolation Efficiency for 0-150°F Operating Temperature and 1 Year Warranty

Obtenga el mejor precio

Contacta con nosotros

86-29-88292913

Contacta ahora

Descripción del producto

Precision Manufacturing Laboratory Measurement and High-End Communications Vibration Isolation with JMZ-T1-0.3

JMZ-T1 Series: Advanced Vibration Isolation Technology

In precision manufacturing, laboratory measurement, and high-end communications, environmental vibrations can significantly impact equipment performance. The JMZ-T1 Series vibration isolator from Xi'an Hoan Microwave provides an innovative solution to this challenge.

Unlike traditional vibration isolation methods, our friction damping technology acts like a "Tai Chi grandmaster," converting destructive mechanical energy into negligible thermal energy. This process creates an "absolute static zone" for sensitive equipment, ensuring:

Elimination of vibration interference from footsteps, vehicles, and HVAC systems
Protection for nanoscale precision equipment like lithography machines
Clear imaging for electron microscopes and other sensitive instruments
Effective filtering across low to mid-high frequency vibration spectra

Structural Dimensions

Technical Specifications

Model	Max PZ-Direction Load (kg)	PZ Displacement Under Max Load (mm)	H (mm)	h (mm)	d (mm)	Weight (g)	Shock Test	Resonance Frequency (Hz)	Operating Temperature Range (°C)
JMZ-T1-0.3	0.3	≤0.6	19.5±0.5	16	M4-7H/ M3-7H	≤58	30g,11ms	＜30	-65～+120
JMZ-T1-0.45	0.45
JMZ-T1-0.6	0.6
JMZ-T1-1.2	1.2		22±0.5	17.5
JMZ-T1-1.4	1.4
JMZ-T1-2.0	2.0

Performance Characteristics

Vibration Isolation Performance

Impact Resistance Performance
