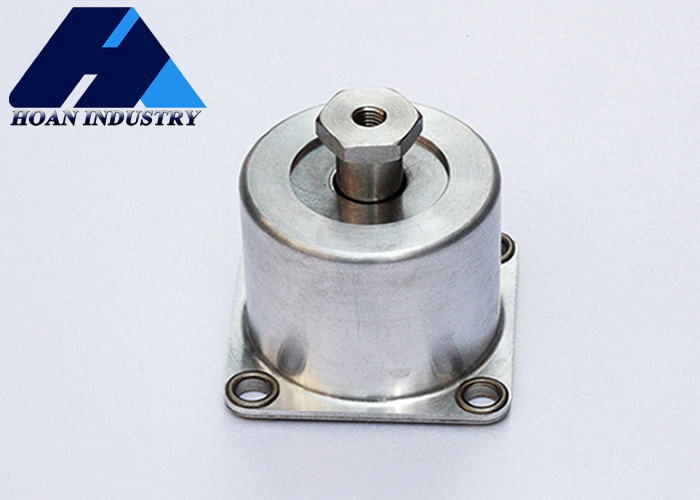

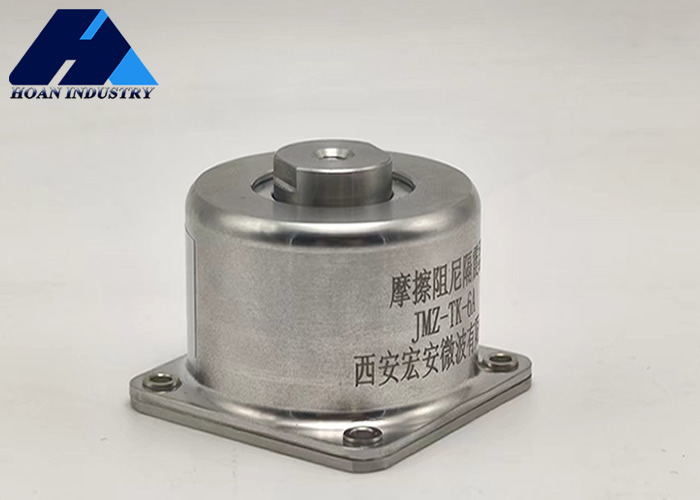

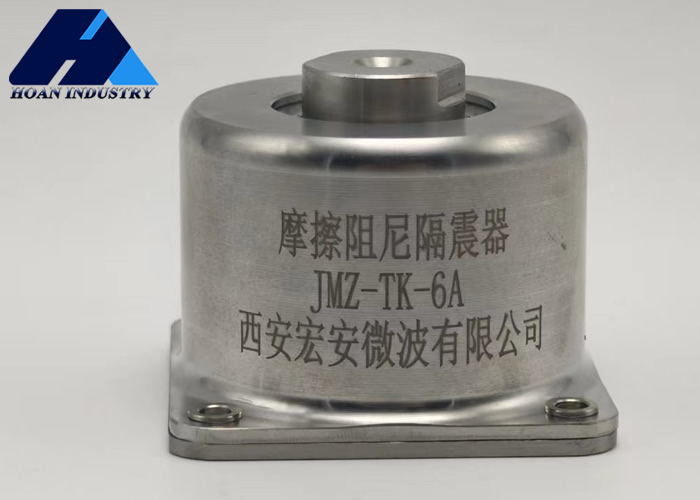

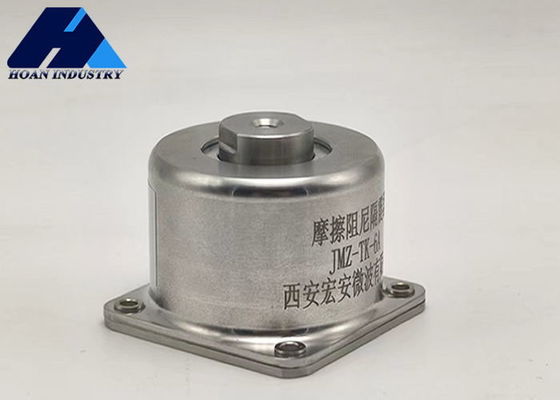

Name: JMZ-T1-0.45 Friction Damping Vibration Isolator with Up to 95% Isolation Efficiency for 0-150°F Operating Temperature and 1 Year Warranty
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JMZ-T1-0.45
Availability: InStock

En casa > productos > El aislante de resorte >

JMZ-T1-0.45 Friction Damping Vibration Isolator with Up to 95% Isolation Efficiency for 0-150°F Operating Temperature and 1 Year Warranty

Up to 95% Isolation Efficiency Friction Damping Vibration Isolator

0-150°F Operating Temperature Spring Isolator

1 Year Warranty Vibration Isolator

Lugar de origen:

PORCELANA

Nombre de la marca:

Hoan

Número de modelo:

JMZ-T1-0.45

Contacta con nosotros

Solicitar una cita

JMZ-T1-0.45 Friction Damping Vibration Isolator with Up to 95% Isolation Efficiency for 0-150°F Operating Temperature and 1 Year Warranty

Detalles del producto

Color:

Plata

Después del servicio de garantía:

Soporte en línea

Orientación de montaje:

Vertical

Forma:

Cilíndrico

Resiliencia:

Alto

Temperatura de funcionamiento:

0-150 ° F

Condición:

Nuevo

Reducción de ruido:

Eficaz

Material:

Acero galvanizado

Garantía:

1 año

Eficiencia de aislamiento:

El hasta 95%

Durabilidad:

De larga duración

Método de instalación:

Montado o incrustado

Ancho general:

32 mm

Personalización:

Disponible a pedido

Resaltar:

Up to 95% Isolation Efficiency Friction Damping Vibration Isolator

0-150°F Operating Temperature Spring Isolator

1 Year Warranty Vibration Isolator

Condiciones de pago y envío

Cantidad de orden mínima

Condiciones de pago

Moneygram, Western Union, T/T, D/P, D/A, L/C

Productos relacionados

JMZ-T1-1.4 32mm Overall Width Spring Isolator with 1 Year Warranty and High Resilience for Industrial Vibration Isolation

Obtenga el mejor precio

JMZ-T1-1.2 Spring Isolator with 95% Isolation Efficiency 32mm Overall Width and UL Listed for Vibration Isolation

Obtenga el mejor precio

JMZ-T1-0.6 Spring Isolator with High Resilience and Strong Shock Resistance for Durable Vibration Control

Obtenga el mejor precio

JMZ-T1-0.45 Friction Damping Vibration Isolator with Up to 95% Isolation Efficiency for 0-150°F Operating Temperature and 1 Year Warranty

Obtenga el mejor precio

Contacta con nosotros

86-29-88292913

Contacta ahora

Descripción del producto

JMZ-T1-0.45 Friction Damping Vibration Isolators

Performance Multiplier for Precision Equipment

The JMZ-T1 Series friction damping vibration isolators from Xi'an Hoan Microwave go beyond basic vibration isolation to become true performance enhancers for your equipment. These isolators provide the environmental stability required for ultra-high-precision applications.

Key Benefits

Extremely low natural frequency for superior vibration isolation
High-efficiency damping reduces vibration interference below theoretical limits
Effectively suppresses self-generated vibrations from internal moving components
Enhances measurement accuracy by an order of magnitude
Improves product yield and shortens R&D cycles

Ideal Applications

Scanning Electron Microscopes (SEMs), Lithography Machines, Atomic Force Microscopes (AFMs), and other precision equipment requiring ultimate stability.

Structural Dimension Diagram

Technical Parameters

Model	Max PZ-Direction Load (kg)	PZ Displacement Under Max Load (mm)	H (mm)	h (mm)	d (mm)	Weight (g)	Shock Test	Resonance Frequency (Hz)	Operating Temperature Range (°C)
JMZ-T1-0.3	0.3	≤0.6	19.5±0.5	16	M4-7H/ M3-7H	≤58	30g,11ms	＜30	-65～+120
JMZ-T1-0.45	0.45
JMZ-T1-0.6	0.6
JMZ-T1-1.2	1.2		22±0.5	17.5
JMZ-T1-1.4	1.4
JMZ-T1-2.0	2.0

Vibration Performance

Impact Performance
