Name: JMZ-TK-5A JMZ-TK Series Combining Rigidity and Flexibility for Optimal Vibration Isolation in High-Frequency and Impact Situations
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: El JMZ-TK-5A
Availability: InStock

En casa > productos > El aislante de resorte >

JMZ-TK-5A JMZ-TK Series Combining Rigidity and Flexibility for Optimal Vibration Isolation in High-Frequency and Impact Situations

Combining Rigidity and Flexibility Spring Isolator

Impact Resistance Vibration Isolator

Customizable Friction Damping Isolator

Lugar de origen:

PORCELANA

Nombre de la marca:

Hoan

Número de modelo:

El JMZ-TK-5A

Contacta con nosotros

Solicitar una cita

JMZ-TK-5A JMZ-TK Series Combining Rigidity and Flexibility for Optimal Vibration Isolation in High-Frequency and Impact Situations

Detalles del producto

Rango de temperatura de funcionamiento:

-40 ° C a 120 ° C

Material:

Primavera

Solicitud:

Control de vibraciones y ruidos.

Industrias aplicables:

Tiendas de materiales de construcción, energía y minería

Durabilidad:

De larga duración

Resiliencia:

Alto

Color:

Plata

Características:

Alta capacidad de carga, excelente aislamiento de vibraciones y ruidos.

Ubicación de la sala de exposición:

Ninguno

Después del servicio de garantía:

Soporte en línea

Eficiencia de aislamiento:

El hasta 95%

Disponibilidad:

Ampliamente disponible

Personalización:

Disponible a pedido

Componentes centrales:

Cojinete

Resaltar:

Combining Rigidity and Flexibility Spring Isolator

Impact Resistance Vibration Isolator

Customizable Friction Damping Isolator

Condiciones de pago y envío

Cantidad de orden mínima

Condiciones de pago

L/C, D/A, D/P, T/T, Western Union, Moneygram

Productos relacionados

JMZ-TK1-50A Helical Structure Spring Steel Friction Damping Vibration Isolator with Vertical Mounting Orientation

Obtenga el mejor precio

JMZ-TK1-40A Customizable Cylindrical Friction Damping Vibration Isolator with Mounting Installation for Energy & Mining

Obtenga el mejor precio

JMZ-TK-8A Customized Solutions Stainless Steel Spring Isolator with Excellent Shock Absorption and Easy Installation

Obtenga el mejor precio

JMZ-TK-7A Corrosion Resistant Friction Damping Isolator with Up to 95% Isolation Efficiency for Vibration Isolation in Energy & Mining

Obtenga el mejor precio

Contacta con nosotros

86-29-88292913

Contacta ahora

Descripción del producto

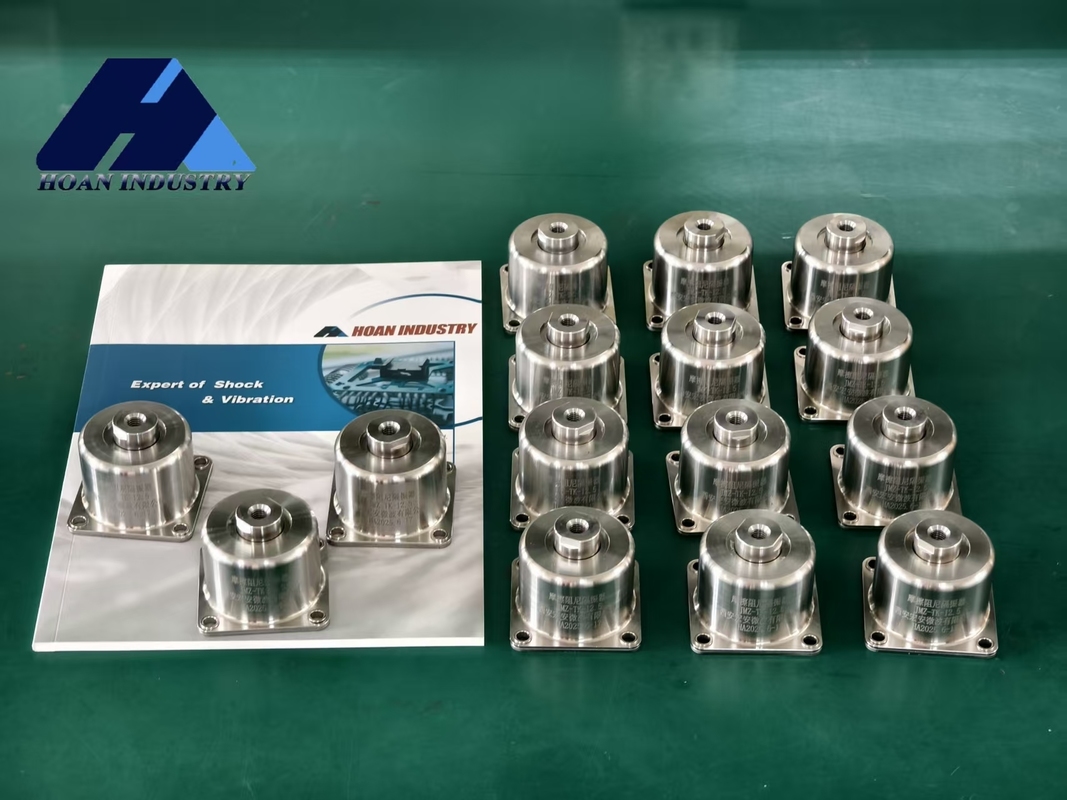

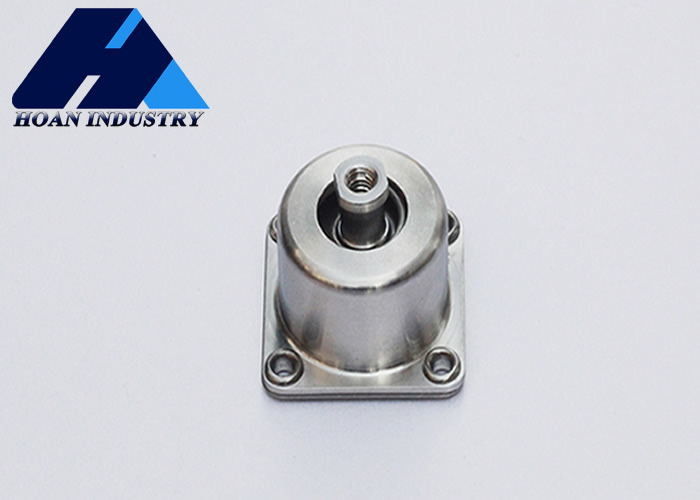

JMZ-TK-5A JMZ-TK Series Vibration Isolators

Combining Rigidity and Flexibility for Optimal Vibration Isolation in High-Frequency and Impact Situations

JMZ-TK Series: Revolutionary Friction Damping Technology

The JMZ-TK series from Xi'an Hoan Microwave Co., Ltd. represents a significant advancement in vibration isolation technology, overcoming the limitations of traditional solutions like spring isolators, rubber isolators, and air springs.

Key Performance Advantages

Nearly Ideal Full-Frequency Protection: Combines high-elasticity components with friction damping mechanism for effective vibration isolation across all frequencies
Outstanding Environmental Adaptability: Maintains stable performance in extreme temperatures from -40°C to +80°C
Long Service Life: Features proprietary wear-resistant materials and simple, reliable design for maintenance-free operation

Structural Dimensions

Model	Installation dimensions (mm)	Overall dimensions (mm)
JMZ-TK-2.5A～8A	B: 46, M: 6, d: 4.1, A: 58, C: 20	∅1: 55, ∅2: 22, H1: 36, H2: 3.6
JMZ-TK1-25A/40A/50A	B: 63, M: 12, d: 8.2, A: 78, C: 20	∅1: 70, ∅2: 22, H1: 56, H2: 6

Technical Parameters

Model	Nominal Load (N)	Load Range (N)	Natural Frequency fn≤(Hz)	Loading Working Height H0±1(mm)	Max Vibration Transmissibility ηv≤	Impact Resistance	Service Life (year)
JMZ-TK-2.5A	25	20～30	33	42	3	100g	10
JMZ-TK-4A	40	30～50
JMZ-TK-5A	50	40～60
JMZ-TK-6A	60	50～70
JMZ-TK-7A	70	60～80
JMZ-TK1-25A	250	200～300

The JMZ-TK series represents Xi'an Hoan's technological innovation in vibration isolation, providing superior stability for demanding industrial applications.
